Place of Origin : CHINA
Brand Name : KONGER
Certification : ISO CE
MOQ : 1SET
Price : USD35000-80000
Packaging Details : PLASTIC FILM
Delivery Time : 40-60DAYS
Payment Terms : TT LC
Supply Ability : 20-30SETS 30DAYS
MATERIAL : PLASTIC
COLOR : WHITE BLUE
WARRANTY : 1YEAR
HS CODE : 8477101090
Crate 360S Crate Injection Molding Machine with Servo System
| ESCRIPTION | UNIT | Crate 360S |
| Injection Unit | ||
| Screw Diameter | mm | 75 |
| Screw ratio | l/d | 20:1 |
| Shot Volume | cm³ | 1546 |
| Shot weight(PS) | g | 1407 |
| Injection Rate | cm³/s | 421 |
| Injection pressure | mpa | 156.4 |
| Max.Screw speed | rpm | 0~190 |
| Clamping Unit | ||
| Clamping force | kn | 3600 |
| Toggle Stroke | mm | 660 |
| Space Between Tie-Bars(WxH) | mm*mm | 660x660 |
| Mold Height(Min~Max) | mm | 250~680 |
| Ejector stroke | mm | 160 |
| Ejector Tonnage | kn | 90 |
| Number of ejector rod | pc | 13 |
| OTHERS | ||
| Max.Pump Pressure | mpa | 16 |
| Motor Power | kW | 65 |
| Heating capacity | kW | 24.6 |
| Machine Dimension | m*m*m | 7.21x1.9x2.34 |
| Oil tank capactiy | l | 620 |
| Machine Weight | ton | 12.5 |
|
|

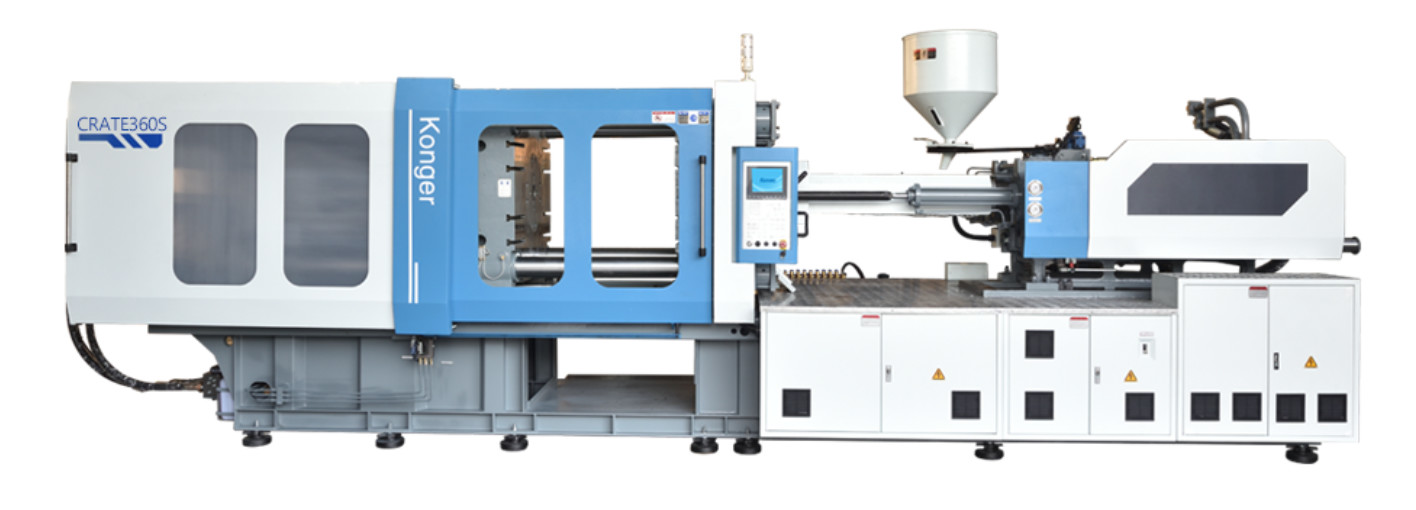

360S Crate Injection Molding Machine White Blue With Servo System Images |
